Series DY

Features include:

  • Finger-safe terminals designed to accept bare wire, ferrules, spade or ring lugs
  • Enclosed coils 1000-5000 VA to protect against moisture, dirt, dust and industrial contaminants
  • Primary Voltage 220 X 440, 230 X 460, 240 X 480
  • Secondary Voltage 110 X 220, 115 X 230, 120 X 240
  • Frequency 50/60 Hz
  • Constructed with high quality silicon steel laminates
  • Highest quality copper magnetic wire ensures efficient operation
  • Labeled with complete wiring diagram
  • Two parallel jumper links come standard with all transformers which can be wired for dual primary voltages
  • Heavy duty steel mounting plate with slotted mounting feet for easy and flexible installation
  • Mounting adapter for fuse blocks
  • Fusing options available in kits or factory installed
  • Meets or exceeds, UL, CE, CSA, NEMA, ANSI,
    and OSHA standards

DY SERIES

DY Series
1000 VA, 50/60 Hz
 PRI SEC
220 X 440          110 X 220
230 X 460          115 X 230
240 X 480          120 X 240
Part # MPC2-1H1K0DYU
DY Series
1500 VA, 50/60 Hz
 PRI SEC
220 X 440          110 X 220
230 X 460          115 X 230
240 X 480          120 X 240
Part # MPC2-1H1K5DYU
DY Series
2000 VA, 50/60 Hz
 PRI SEC
220 X 440          110 X 220
230 X 460          115 X 230
240 X 480          120 X 240
Part # MPC2-1H2K0DYU
DY Series
3000 VA, 50/60 Hz
 PRI SEC
220 X 440          110 X 220
230 X 460          115 X 230
240 X 480          120 X 240
Part # MPC2-3K0DYU***
DY Series
5000 VA, 50/60 Hz
 PRI SEC
220 X 440          110 X 220
230 X 460          115 X 230
240 X 480          120 X 240
Part # MPC2-1H5K0DYU***

DY SERIES

Transformer

  PRI                             SEC

220 X 440                    110 X 220
230 X 460                    115 X 230
240 X 480                    120 X 240

ICT Size

Image is a general representation of a typical MPC Transformer without fusing accessories or jumper links. Transformers 50VA - 350 VA have 4 terminals per side and units 500Va and higher have 6 terminals per side.

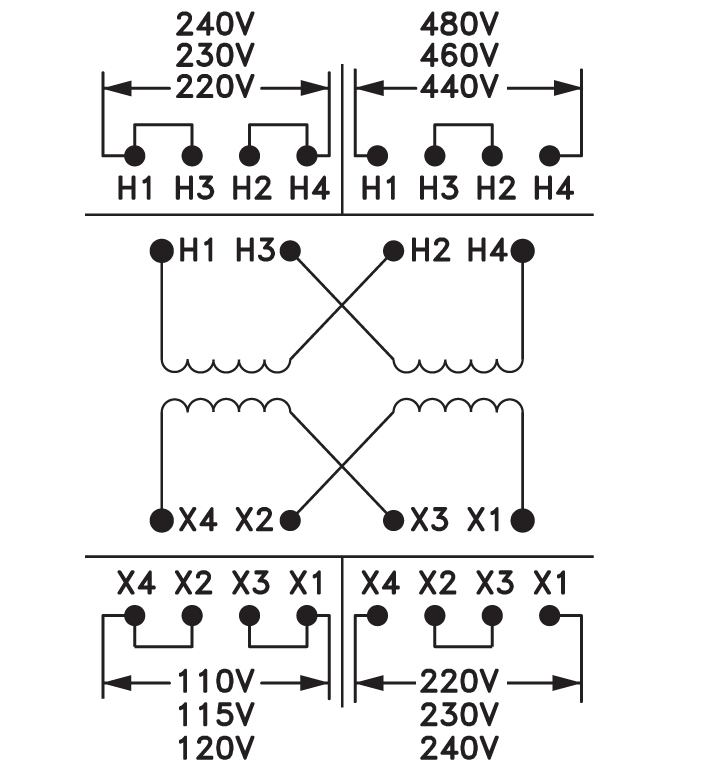

Wire Diagram FN

Wiring Diagram




Approximate Dimensions and Weight
            Mounting Hole Shipping
VA
Rating
MPC
Model #
Max
Depth
(A)
Max
Width (B)
Max
Height (C)
Mounting
Depth (D)
Mounting
Depth (E)
Depth Width Weight
(lbs.)
1,000 MPC2-1H1K0DYU 7.01 7.00 5.65 5.38 4.38 0.31 1.06 29.80
1,500 MPC2-1H1K5DYU 8.00 7.00 5.65 4.50 6.13 0.31 1.06 30.00
2,000 MPC2-1H2K0DYU 8.76 7.00 5.65 5.13 6.13 0.31 1.06 38.00
3,000 MPC2-1H3K0DYU*** 8.14 9.00 7.62 4.25 6.50 0.44 1.00 53.00
5,000 MPC2-1H5K0DYU*** 9.14 9.00 7.62 7.25 7.50 0.44 1.00 89.00

***This model is not available with the FO option (Consider F1)
-Add end suffix for fusing options
-Add C to suffix for the covers




Fusing Options

Fusing Option FO

Option FO

Option F1

Option F1

Fusing Option F2

Option F2

Fusing Option F3

Option F3

Fusing Option F4

Option F4

Add to
(MPC Part #)

MPC Part
(Ordered Separately)
Fusing Options
C MCP2-ACC-PFBCVK   PRI Fuse Cover Kit with puller
C MCP2-ACC-SFBCVK   Secondary Fuse Cover Kit
FO MCP2-ACC-FOB           Kit Secondary Fuse Clips (45VA-750VA)
FO MCP2-ACC-FOH          Kit Secondard Fuse Clips (1KVA-5KVA)
F1 MCP2-ACC-F1             Kit Sec Fuse Block 1 - Midget
F2 MCP2-ACC-F2             Kit PRI Fuse Block 2 - CC
F3 MCP2-ACC-F3             Kit Fuse Block 2 - CC & 1 - Midget
F4 MCP2-ACC-F4             Kit Fuse Block 2 - CC & Clips
